BXB EPS-C083 Extension Power Supply Price in Bangladesh

৳ 0.00

Field	Details
Product	BXB EPS-C083 Extension Power Supply
Price	Contact for Latest Price
Compatible Systems	BXB FCS 3000 / FCS 6000 / FCS 6300 / UFO 2000
Ports	RJ45 × 5 (4 Output + 1 Input)
Max Mics Per Output	Up to 20 microphone consoles
DC Output	18V / 5.6A / 100.8W
Input Voltage	90–264V AC
Shell	Aluminum, square design
Best For	Expanding large BXB wired conference systems

Warranty

1 Years

বিশেষ সতর্কবার্তা: বাজারের অস্থিতিশীলতার কারণে পণ্যের দাম ও স্টক যেকোনো সময় পরিবর্তন হতে পারে। তাই অর্ডার করার পূর্বে অবশ্যই আমাদের হেল্পলাইনে কল করে পণ্যের স্টক ও বর্তমান দাম সম্পর্কে নিশ্চিত হয়ে নেওয়ার অনুরোধ রইল।

SKU: N/A Categories: BXB Conference System, Audio Conference system, Conference system Tag: BXB EPS-C083 Extension Power Supply

Description

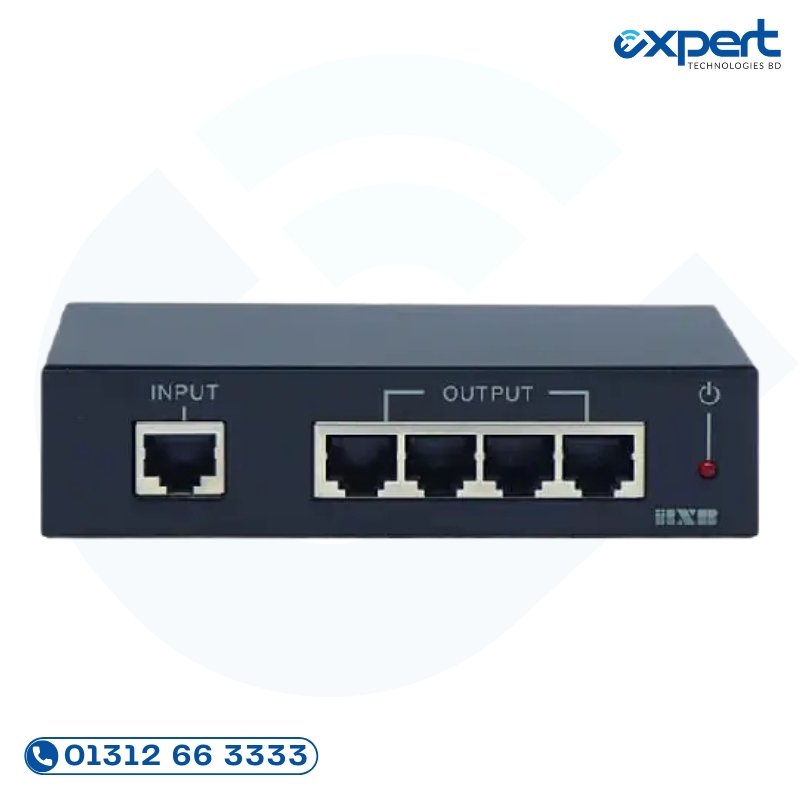

The BXB EPS-C083 is an active RJ45 extension power supply designed to expand BXB conference systems including the FCS 3000, FCS 6000, FCS 6300, and UFO 2000 series. It features 4 RJ45 output ports and 1 RJ45 input port, allowing up to 20 microphone consoles to be connected per output — making it ideal for large conference halls that need to extend beyond the main control unit’s capacity. With an 18V DC output, 100.8W rated power, aluminum shell construction, and a built-in LED power indicator, the EPS-C083 is a reliable expansion solution for professional wired conference systems in Bangladesh. Contact Expert Technologies BD for the latest BXB EPS-C083 price in Bangladesh.#

Highlights

Type: Active RJ45 Extension Power Supply
Compatible Systems: BXB FCS 3000 / FCS 6000 / FCS 6300 / UFO 2000
Ports: RJ45 × 5 (4 Output + 1 Input)
Max Microphones Per Output: Up to 20 units
DC Output Voltage: 18V
Rated Output Power: 100.8W
Input Voltage: 90–264V AC / 127–370V DC
Shell: Aluminum, square design
LED Indicator: Power-on indicator included

Specification

Specification	Details
Brand	BXB
Model	EPS-C083
Product Type	Active RJ45 Extension Power Supply
Compatible Systems	BXB FCS 3000 / FCS 6000 / FCS 6300 / UFO 2000
Ports	RJ45 × 5 — Output × 4 / Input × 1
Max Mics Per Output	Up to 20 microphone consoles
DC Output Voltage	18V
Rated Current	5.6A
Rated Output Power	100.8W
Voltage Adj. Range	16.2V – 18.2V
Input Voltage Range	90–264V AC / 127–370V DC
Frequency Range	47–63Hz
Power Factor	PF >0.93 @ 230VAC / PF >0.98 @ 115VAC (full load)
Efficiency	80%
Leakage Current	<2mA / 240VAC
Shell Material	Aluminum, square design
LED Indicator	Power-on indicator
Control	Simultaneous control between main unit & extension power supply

Description

When a BXB conference system grows beyond what the main control unit can handle alone, the EPS-C083 is the solution. It is an active RJ45 extension power supply — essentially a powered splitter that lets you add more microphone consoles to an existing BXB setup without replacing the central controller.

Each of its 4 RJ45 output ports can support up to 20 microphone consoles, meaning a single EPS-C083 unit can extend a conference system to handle up to 80 additional mic positions in combination with the main unit. It is compatible with BXB’s FCS 3000, FCS 6000, FCS 6300, and UFO 2000 series systems.

The unit runs on an 18V DC output with 100.8W of rated power, drawing from a wide-range AC input (90–264V) that works on both the 110V and 220V power supplies common across Bangladesh and internationally. The aluminum shell gives it solid build quality for AV rack or console installation, and the LED power indicator makes it easy to confirm the unit is live at a glance.

Simultaneous control between the main control unit and the extension power supply is fully supported, meaning the AV operator does not need to manage them separately — both respond as one unified system.

Key Feature

Active RJ45 splitter — extends BXB conference systems beyond the main unit’s capacity
4 RJ45 output ports, each supporting up to 20 microphone consoles
Compatible with BXB FCS 3000, FCS 6000, FCS 6300, and UFO 2000 series systems
Simultaneous control between main control unit and extension power supply
18V DC output with 100.8W rated power for stable, consistent mic power delivery
Wide input voltage range (90–264V AC) — works on both 110V and 220V power supplies
Aluminum shell with square design — durable and rack-friendly
LED power-on indicator for at-a-glance status confirmation

Best Use case

Large corporate conference halls (40+ seats)
Government council & parliament meeting rooms
University & institutional auditoriums
Hotel banquet & conference halls
Court & arbitration chambers
Multi-room BXB conference system expansions
Embassy & diplomatic meeting venues
AV system integrations requiring extended mic counts

Why Buy from Expert Technologies BD?

Genuine BXB product — no grey-market risk
Complete BXB conference system support: FCS 3000, FCS 6000, FCS 6300, UFO 2000, and accessories
Expert consultation on system expansion planning and mic count
Installation support for large conference halls and auditoriums
Fast delivery across Dhaka and Bangladesh
After-sales technical support
Visit our showrooms at Uttara & Shantinagar for a demo

FAQs

Q: What is the price of BXB EPS-C083 in Bangladesh?

A: The price of the BXB EPS-C083 extension power supply in Bangladesh varies based on stock and configuration. Contact Expert Technologies BD for the latest price and availability.

Q: What is the BXB EPS-C083 used for?

A: The EPS-C083 is an active RJ45 extension power supply that expands the microphone capacity of BXB conference systems. It adds 4 additional RJ45 output ports, each supporting up to 20 microphone consoles, for use with the BXB FCS 3000, FCS 6000, FCS 6300, and UFO 2000 series.

Q: How many microphones can be connected to the EPS-C083?

A: Each of the 4 RJ45 output ports supports up to 20 microphone consoles, so a single EPS-C083 can extend the system by up to 80 additional mic positions when all 4 ports are used.

Q: Which BXB conference systems are compatible with the EPS-C083?

A: The EPS-C083 is compatible with the BXB FCS 3000, FCS 6000, FCS 6300, and UFO 2000 series conference systems. It is not designed for use with other brands.

Q: Does the EPS-C083 work on Bangladesh’s 220V power supply?

A: Yes. The EPS-C083 supports a wide input voltage range of 90–264V AC, making it fully compatible with Bangladesh’s standard 220V power supply as well as international 110V systems.

Q: Can the EPS-C083 be controlled together with the main control unit?

A: Yes. The EPS-C083 supports simultaneous control between the main control unit and the extension power supply, so the AV operator can manage both from a single point without switching between units.

Q: Where can I buy the BXB EPS-C083 in Bangladesh?

A: You can buy the BXB EPS-C083 from Expert Technologies BD — genuine product, expert consultation, fast delivery across Bangladesh, and full after-sales support. Visit our showrooms in Uttara or Shantinagar.
