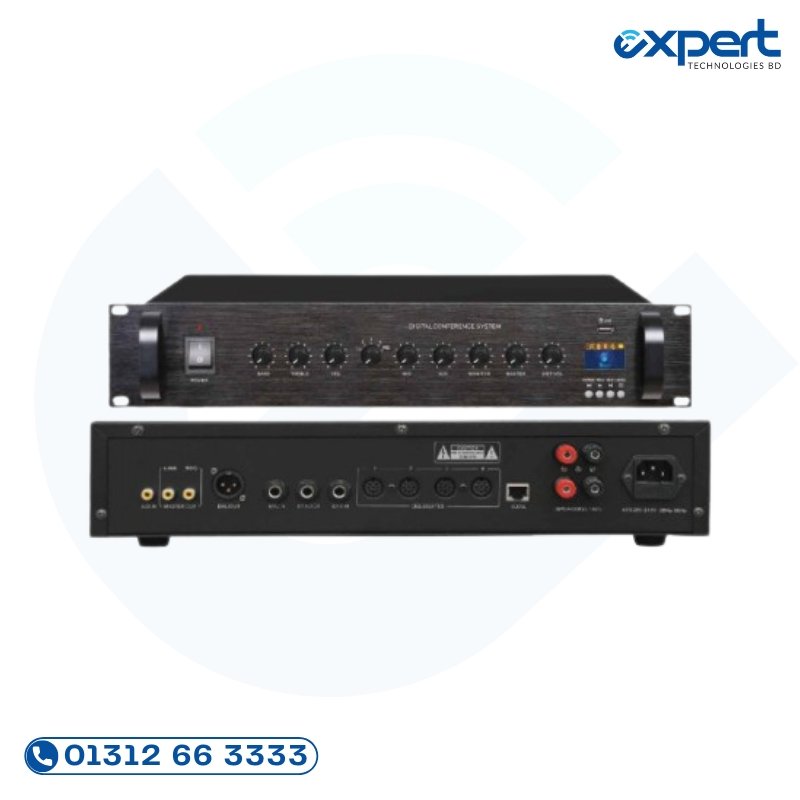

HTDZ HT-7000 Main Amplifier Unit Conference System

HTDZ HT-7000 Main Amplifier Price in Bangladesh

৳ 42,000.00

Feature	Details
Model	HTDZ HT-7000
Type	Main Amplifier Unit (Conference System)
Power	450W Consumption Rating
System Ports	8-Pin DIN × 4
Audio I/O	RCA × 3, XLR × 1, Φ6.35 × 1
Data Port	RJ45 × 1
Mounting	19″ / 2U Rack
Warranty	1 Year

Warranty

1 Years

বিশেষ সতর্কবার্তা: বাজারের অস্থিতিশীলতার কারণে পণ্যের দাম ও স্টক যেকোনো সময় পরিবর্তন হতে পারে। তাই অর্ডার করার পূর্বে অবশ্যই আমাদের হেল্পলাইনে কল করে পণ্যের স্টক ও বর্তমান দাম সম্পর্কে নিশ্চিত হয়ে নেওয়ার অনুরোধ রইল।

SKU: N/A Categories: HTDZ Conference System, Audio Conference system, Conference system Tag: HTDZ HT-7000 Main Amplifier Unit Conference System

Description

The HTDZ HT-7000 Main Amplifier Unit is available in Bangladesh at ৳42,000. Designed as the central power and audio hub for HTDZ wired conference setups, this 2U rack-mountable unit delivers 450W power, features four 8-pin DIN system connection ports, and offers RCA/XLR audio I/O with RJ45 data communication. It is ideal for medium-to-large meeting rooms, training halls, and institutional conference setups that need a reliable wired amplifier backbone.

Quick Highlights

450W power consumption rating for stable multi-unit operation
<0.05% THD and >75dB S/N ratio for clean, intelligible speech
Four 8-pin DIN ports for connecting chairman, delegate, and extension units
RCA and XLR audio I/O for easy integration with external PA or recording equipment
RJ45 data communication port for system networking
19-inch 2U rack-mount design for clean AV cabinet installation
110V/240V dual voltage power supply for flexible deployment
1 year warranty

Specification

Specification	Details
Brand	HTDZ
Model	HT-7000
Product Type	Main Amplifier Unit (Conference System)
Power Supply	AC 110V/240V, 50Hz~60Hz
Consumption Rating	450W
T.H.D.	<0.05%
S/N Ratio	>75dB
Frequency Response	100Hz–18KHz
Audio Output	RCA × 2, XLR × 1
Audio Input	RCA × 1, Φ6.35 × 1
Output Impedance	47KΩ
Data Communication	RJ45 × 1
System Connection	8-Pin DIN × 4
Dimensions	488 × 360 × 84mm (19″/2U)
Net Weight	12.7 Kg
Color	Grey
Warranty	1 Year

Problem-Solution Description

Without a central amplifier, conference systems suffer from weak audio, distorted speech, and limited ability to connect multiple chairman and delegate units. The HTDZ HT-7000 solves this by providing stable power, multiple system expansion ports, and professional audio connectivity in a single rack-mountable box.

Power Multiple Units: Four 8-pin DIN ports let you connect chairman, delegate, and extension units in a single system chain without signal degradation.
Clean Speech Output: With less than 0.05% total harmonic distortion and over 75dB signal-to-noise ratio, voices stay clear and easy to understand even in long meetings.
Professional Audio Routing: RCA and XLR inputs and outputs integrate easily with external PA systems, mixers, or recorders for larger sound reinforcement.
Rack-Ready Design: The standard 19-inch 2U chassis fits neatly into AV cabinets, keeping cables organized and the equipment room tidy.
Dual Voltage Support: The 110V/240V auto-switching power supply works reliably across different electrical environments in Bangladesh.

Review: Is It Worth Buying?

Yes, if you are building a wired HTDZ conference system for medium-to-large rooms.

The HT-7000 provides the necessary power and connectivity backbone for multi-unit conference setups. It is designed specifically for speech-focused applications, not music playback, and the low distortion combined with four DIN outputs makes it practical for connecting a full chairman and delegate arrangement.

Skip this if you need a wireless conference system or a simple USB plug-and-play microphone. Choose this if you want a centralized, rack-mounted amplifier that powers a complete HTDZ wired conference setup.

Best Use Cases

Corporate conference rooms with multiple speaking positions
Training centers and seminar halls
Government office meeting rooms
Institutional discussion and committee halls
Hotel conference rooms with wired system infrastructure

Why Buy from Expert Technologies BD?

Genuine HTDZ products with 1-year warranty
Complete conference system consultation and design
Installation support for rack-mounted setups
After-sales technical service across Bangladesh
Nationwide delivery

Frequently Asked Questions (FAQs)

What is the price of HTDZ HT-7000 in Bangladesh?
The current price is ৳42,000.

What is the HTDZ HT-7000 used for?
It is the main amplifier and central hub for HTDZ wired conference systems, powering and connecting chairman and delegate units.

How many conference units can connect to the HT-7000?
It features four 8-pin DIN system connection ports for connecting multiple HTDZ conference units.

Does it have XLR and RCA connections?
Yes, it includes RCA × 2 and XLR × 1 audio outputs, plus RCA × 1 and Φ6.35 × 1 audio inputs.

Is the HTDZ HT-7000 rack mountable?
Yes, it is a standard 19-inch 2U rack-mountable unit with dimensions of 488 × 360 × 84mm.

What is the power consumption?
The consumption rating is 450W.

Does it support both 110V and 240V?
Yes, the power supply supports AC 110V/240V, 50Hz~60Hz.

What is the frequency response?
The frequency response is 100Hz–18KHz.
