TOA TS-792L Delegate Unit for Conference System

Original price was: ৳ 39,000.00.Current price is: ৳ 37,500.00.

Feature	Details
Model	TOA TS-792L
Type	Delegate Unit
Compatible Central Unit	TS-7912D / TS-7912DW
Microphone	Electret condenser, 518mm long
Speaker	Built-in monitor, 200mW
Headphone	Dual Ø3.5mm mini jack
Control	Speech button, dual volume controls
Weight	800g

Warranty

1 Years

বিশেষ সতর্কবার্তা: বাজারের অস্থিতিশীলতার কারণে পণ্যের দাম ও স্টক যেকোনো সময় পরিবর্তন হতে পারে। তাই অর্ডার করার পূর্বে অবশ্যই আমাদের হেল্পলাইনে কল করে পণ্যের স্টক ও বর্তমান দাম সম্পর্কে নিশ্চিত হয়ে নেওয়ার অনুরোধ রইল।

SKU: N/A Categories: TOA Conference System, Audio Conference system, Conference system Tag: TOA TS-792L Delegate Unit for Conference System

Description

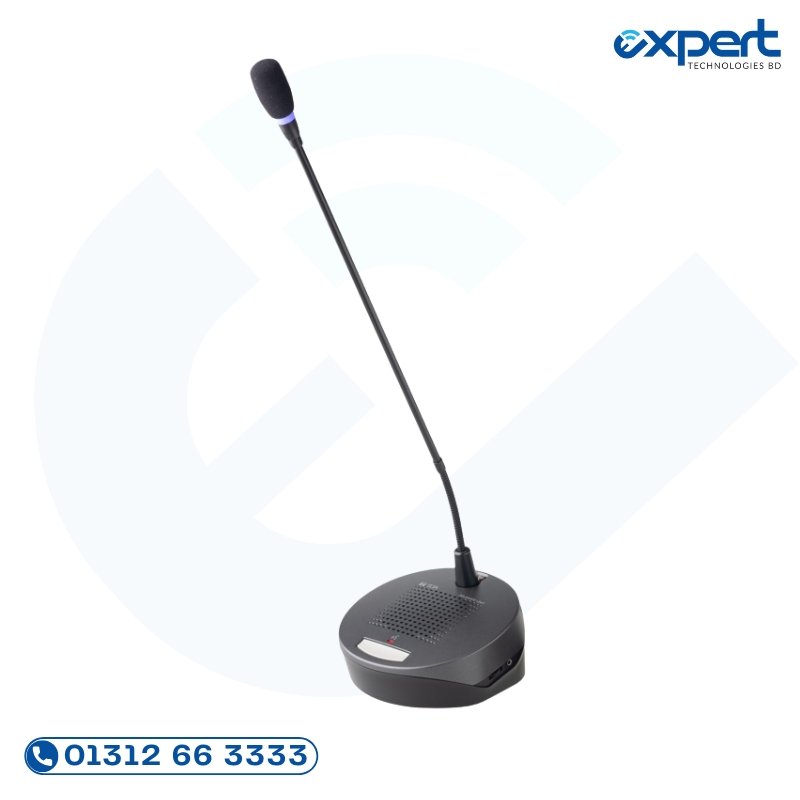

The TOA TS-792L is a compact delegate unit for TOA wired conference systems in Bangladesh. Designed for meeting participants, it features a 518mm long electret condenser microphone, a built-in 200mW monitor speaker, dual headphone/recording outputs, and an intelligent speech button that automatically disables the speaker when the microphone is active to prevent feedback. It is powered by the TOA TS-7912D or TS-7912DW central unit. For the latest price and availability, contact Expert Technologies BD.

Quick Highlights

518mm long electret condenser microphone with blue ring LED speech indicator
Built-in 200mW monitor speaker for personal audio monitoring
Dual Ø3.5mm mini jacks for headphone and recording output
Anti-feedback speech button: Mic ON disables speaker; Mic OFF enables speaker to monitor others
Independent volume controls for headphone/recording and monitor speaker
Compact and lightweight at only 800g
Dark grey and black ABS resin finish for professional appearance

Specification

Specification	Details
Brand	TOA
Model	TS-792L
Product Type	Delegate Unit
Power Source	36 V DC, 30 mA or less (from TS-7912D / TS-7912DW)
Output	Headphone/Recording: Ø3.5 mm mini jack (3P: monaural) × 2
	Monitor speaker: 130 Ω, 200 mW
Control	Speech button (microphone, speaker on-off control)
	Volume control: Headphone/Recording and monitor speaker × 2
Microphone Unit (Accessory)	Electret condenser microphone
	Directivity: Unidirectional
	Impedance: 1.8 kΩ
	Sensitivity: -37 dB (1 kHz, 0 dB = 1 V/Pa)
	Frequency Response: 100 Hz – 13 kHz
	LED indicator: Speech indicator (ring type) Blue
	Length: 518 mm
	Weight: 105 g
Operating Temperature	0 °C to +40 °C
Operating Humidity	90 %RH or less (no condensation)
Finish	Upper case: ABS resin, dark grey, paint
	Lower case: ABS resin, black, paint
Dimensions	145.3 (W) × 70.7 (H) × 150.5 (D) mm (excluding microphone)
Weight	800 g
Accessory	Long microphone unit × 1
Option	Extension cord: YR-790-3, YR-790-10

Problem-Solution Description

In conference meetings, participants often struggle with feedback when their microphone and speaker are both active, or they cannot hear other speakers clearly when their own microphone is off. The TOA TS-792L solves both problems with smart switching.

Speak Without Feedback: When the speech button is ON, the microphone activates and the built-in speaker automatically disables, preventing acoustic feedback completely.
Monitor When Silent: When the speech button is OFF, the microphone deactivates and the speaker turns on, letting the delegate hear other participants clearly.
Private Listening: Dual headphone jacks with independent volume control allow delegates to listen discreetly without disturbing others or relying on room speakers.
Comfortable Reach: The 518mm long microphone sits comfortably in front of participants who sit back from the table edge.
Clear Status: The blue ring LED shows at a glance when the microphone is active, reducing confusion during live sessions.

Review: Is It Worth Buying?

Yes, if you need a standard delegate unit for a TOA TS-7912D or TS-7912DW conference system.

The TS-792L is a practical, purpose-built delegate unit that gives participants exactly what they need: clear speech pickup, personal monitoring, and feedback-free operation. The long microphone included as a standard accessory is a genuine convenience that saves separate purchases. It does not have chairman priority control, but for regular delegates, it covers all essentials reliably.

Skip this if you need a wireless system or a chairman unit with override control. Choose this if you are expanding a TOA wired conference system and need dependable delegate positions with long-reach microphones.

Best Use Cases

Corporate boardrooms with TOA conference systems
Government meeting and committee rooms
University and college conference halls
Training centers and seminar rooms
Hotel conference facilities
Courtrooms and hearing rooms

Why Buy from Expert Technologies BD?

Genuine TOA professional conference products
Complete system support for TS-7912D / TS-7912DW setups
Installation guidance for daisy-chain wiring
After-sales technical service across Bangladesh
Nationwide delivery

Frequently Asked Questions (FAQs)

What is the price of TOA TS-792L in Bangladesh?
For the latest price, please contact Expert Technologies BD directly.

Which central unit powers the TOA TS-792L?
It is powered by the TOA TS-7912D or TS-7912DW central unit.

Does the TS-792L have a built-in speaker?
Yes, it has a built-in 200mW monitor speaker for personal audio monitoring.

How does it prevent feedback?
The speech button automatically disables the speaker when the microphone is turned on, preventing acoustic feedback.

What is the length of the microphone?
The included long microphone unit is 518 mm (electret condenser, unidirectional).

Does it support headphones?
Yes, it features dual Ø3.5mm mini jacks for headphone and recording output with independent volume control.

Can I use the TS-792L as a standalone microphone?
No. It must be connected to a compatible TOA central unit (TS-7912D or TS-7912DW) to receive power and function.

What extension cords are available?
Optional extension cords YR-790-3 (3 meters) and YR-790-10 (10 meters) are available for flexible placement.
