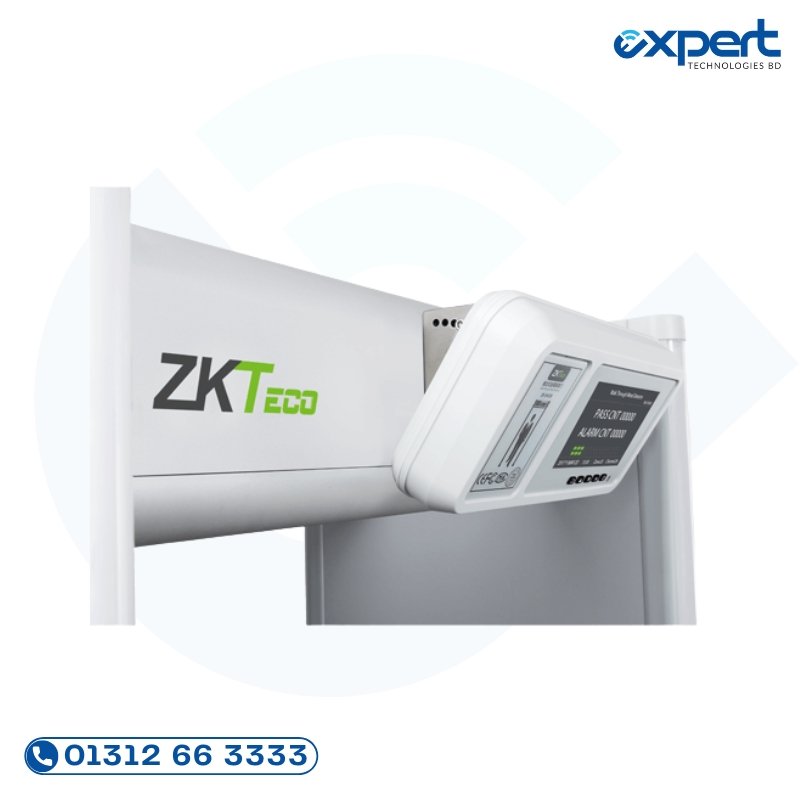

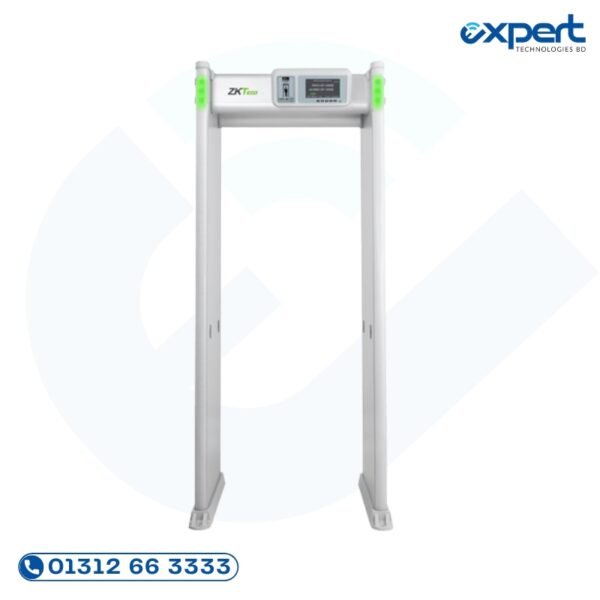

ZK-D4330 multi-zone walk-through metal detector security gate with TCP-IP network interface, LED indicators, and physical keypad for commercial entry security.

ZK-D4330 Multi-Zone Walk-Through Metal Detector with TCP/IP & 69 Adjustable Zones

Name: ZK-D4330 Multi-Zone Walk-Through Metal Detector with TCP/IP & 69 Adjustable Zones
Price: 205000.00 BDT
Availability: InStock

Original price was: ৳ 210,000.00.Current price is: ৳ 205,000.00.

The ZK-D4330 is a premium, high-performance walk-through metal detector engineered for top-tier security environments. Featuring advanced TCP/IP communication and an adjustable 12 to 69 detection zone mode, it offers unmatched precision in identifying both ferrous and non-ferrous metal contrabands. With 500 adjustable sensitivity levels, exceptional anti-interference stability, and a high-speed verification rate, it is the ultimate security gate solution for airports, corporate offices, public venues, and industrial sectors.

Warranty

1 Years

Clear

বিশেষ সতর্কবার্তা: বাজারের অস্থিতিশীলতার কারণে পণ্যের দাম ও স্টক যেকোনো সময় পরিবর্তন হতে পারে। তাই অর্ডার করার পূর্বে অবশ্যই আমাদের হেল্পলাইনে কল করে পণ্যের স্টক ও বর্তমান দাম সম্পর্কে নিশ্চিত হয়ে নেওয়ার অনুরোধ রইল।

Compare

SKU: N/A Categories: Archway Gate, Security Solutions Tags: Security gate metal detector, Walk through metal detector price, ZK-D4330 Metal Detector

Description

ZK-D4330 Multi-Zone Walk-Through Metal Detector: Advanced Security Redefined

Upgrade your facility’s security infrastructure with the ZK-D4330 Walk-Through Metal Detector. Designed to meet strict modern security standards, this archway gate combines rapid throughput with flawless detection accuracy, ensuring comprehensive protection without causing entry-point delays.

Key Features

Smart TCP/IP Communication: Seamlessly integrates into your network infrastructure, allowing for real-time data monitoring, remote configuration, and central management.
Highly Adjustable Multi-Zone Detection: Configurable into 12, 24, 33, 46, or 69 zones. This multi-zone layout pinpoint-locates hidden metallic objects on a person’s body instantly.
500 Sensitivity Levels: Micro-adjustable sensitivity settings let you calibrate the gate perfectly—filtering out harmless personal items like coins or keys while capturing actual security threats.
Rapid Throughput & High Accuracy: Smoothly processes up to 40 persons per minute, preventing bottlenecks at busy entrances during peak operational hours.
Intelligent Memory Function: Built-in memory tracks and retains both pass counts and alarm counts for comprehensive security auditing.
Robust Audio & Visual Indicators: Features 16 customizable alarm tones, adjustable volume up to 80 dB, and distinct 4-set LED status indicators (Green for passing, Red for alarming, Yellow for non-passing).

Technical Specifications

Parameter	Specification
Detection Zone	12 / 24 / 33 / 46 / 69 zones adjustable
Sensitivity Level	500 levels
Communication Interface	TCP/IP Network Interface, Relay Output
Smallest Object Detected	Φ22.25 * T1.85 mm (Steel-nickel alloy)
Throughput Rate	40 persons per minute
Infrared (IR) Sensors	2 Groups (Default Infrared Detection Mode)
Power Supply & Consumption	AC100V to 240V (DC15V/4.8A) / 20W
Duty Cycle	24/7 continuous operation capability
Enclosure Material	Flame Retardant ABS Polymer, Three-ply Board, PVC
*Dimensions (L W * H)**	2220 * 930 * 760 mm
Net / Gross Weight	60 kg / 70 kg
Certifications	CE-EMC, CE-LVD, FCC sDOC

Why Choose the ZK-D4330?

Built with durable, flame-retardant ABS polymer, the ZK-D4330 is designed to withstand heavy daily use. It supports various language interface customizations and features an optional semi-outdoor configuration, making it a highly adaptive, reliable asset for safeguarding corporate, commercial, and industrial properties.
