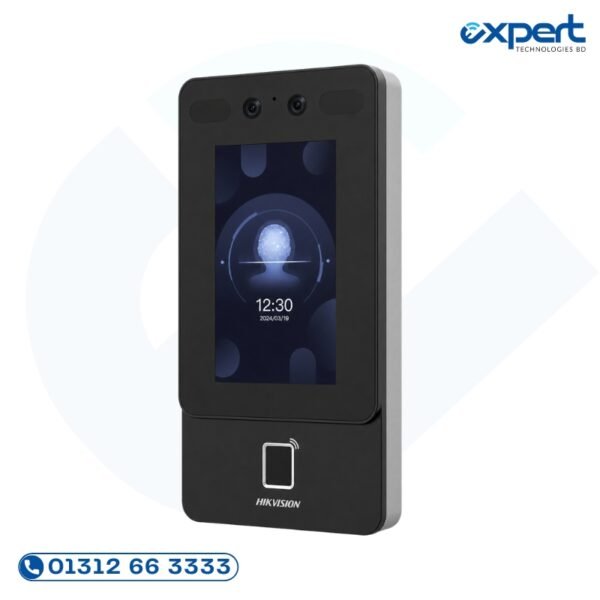

Hikvision DS-K1T342EFWX-E1 Face Access Terminal in Bangladesh

Description

Hikvision DS-K1T342EFWX-E1 price in Bangladesh: Contact for Latest Price. It is a face recognition access terminal with 1,500 face capacity, 3,000 fingerprints, and 3,000 M1 cards. Featuring a 4.3-inch touch screen, 2MP camera, mask recognition, Wi-Fi, TCP/IP, and PoE support, it provides secure and flexible access control for offices and commercial premises.

Key Features

• Face capacity: 1,500
• Fingerprint capacity: 3,000
• Card capacity: 3,000 (M1 card, 13.56 MHz)
• 4.3-inch LCD capacitive touch screen
• 2MP wide-angle camera
• Face recognition distance: 0.3m – 1.5m
• Recognition speed: <0.2 seconds per user
• Accuracy rate: ≥99%
• Supports face with mask recognition
• Built-in M1 card reader module
• Wi-Fi and TCP/IP connectivity
• Standard PoE support
• Door lock power supply output (12VDC/1A)
• Supports platform-based and device-based PIN

The Hikvision DS-K1T342EFWX-E1 Value Series Face Access Terminal is a modern biometric access control device designed for secure and flexible authentication in Bangladesh. It supports multiple verification methods including face recognition, fingerprint scanning, M1 card (13.56 MHz), and PIN authentication. This makes it suitable for organizations that require layered security while maintaining convenience for users.

Equipped with a 4.3-inch capacitive touch screen and a 2MP wide-angle lens, the device delivers accurate and fast recognition. The face recognition speed is less than 0.2 seconds per user, with an accuracy rate of 99% or higher. The recognition distance ranges from 0.3 meters to 1.5 meters, allowing users to authenticate comfortably without physical contact.

The DS-K1T342EFWX-E1 supports up to 1,500 face templates, 3,000 fingerprints, and 3,000 M1 cards, along with storage of 150,000 event logs. This makes it suitable for small to medium-sized organizations requiring reliable attendance and access control management.

One of the key advantages of this model is its support for mask recognition, allowing accurate identification even when users are wearing face masks. This feature enhances usability in environments where face coverings are common.

The terminal supports TCP/IP and Wi-Fi connectivity, enabling flexible network integration. Additionally, it supports standard PoE (Power over Ethernet), which simplifies installation by providing both power and network connection through a single cable. It can also supply 12VDC/1A power output directly to the door lock, reducing the need for separate power adapters.

With support for ISAPI and ISUP 5.0 protocols, configuration can be managed via web client or integrated into Hikvision security platforms. The device also supports both platform-applied and device-set personal PIN, offering flexible configuration for administrators.

Technical Specifications

Brand: Hikvision
Model: DS-K1T342EFWX-E1
Product Type: Face Recognition Access Terminal

Face Capacity: 1,500
Fingerprint Capacity: 3,000
Card Capacity: 3,000 (M1 Card, 13.56 MHz)
Log Capacity: 150,000

Display: 4.3-inch LCD Capacitive Touch Screen
Camera: 2MP Wide-Angle Lens
Recognition Distance: 0.3m – 1.5m
Recognition Speed: <0.2 seconds
Accuracy: ≥99%
Mask Recognition: Supported

Connectivity: TCP/IP, Wi-Fi
Power Supply: Standard PoE or 12VDC
Door Lock Output: 12VDC / 1A
Protocols: ISAPI, ISUP 5.0
Configuration: Web Client

Problem–Solution Description

Need multiple authentication methods in one device?
This terminal supports face, fingerprint, M1 card, and PIN authentication, allowing organizations to manage different user preferences and security requirements efficiently.

Want easier installation without extra wiring?
With PoE support, the device can receive both power and network connection through a single Ethernet cable, reducing installation complexity.

Concerned about recognition with face masks?
The device supports mask recognition, maintaining reliable performance even when users wear masks.

Need secure door control integration?
The terminal provides built-in access control and can directly power a door lock with 12VDC output, simplifying system design.

Require fast and accurate recognition?
With <0.2 second recognition speed and ≥99% accuracy, it ensures smooth entry flow during peak hours.

Best Use Cases

• Corporate office access control
• Factory staff entry management
• School and university attendance systems
• Apartment and residential security
• Commercial building access points
• Government office entry systems
• Retail and warehouse employee management
• SME biometric attendance deployment

Why Buy from Expert Technologies BD?

• Genuine Hikvision access control products
• Professional installation and system integration
• PoE and lock control setup support
• Technical assistance across Bangladesh
• Showrooms in Uttara & Shantinagar, Dhaka
• Competitive pricing with after-sales support

FAQs

Q: What is the Hikvision DS-K1T342EFWX-E1 used for?
A: It is used for face recognition attendance and access control in offices, factories, schools, and commercial premises.

Q: Does it support fingerprint authentication?
A: Yes, it supports up to 3,000 fingerprints.

Q: What type of card does it support?
A: It supports M1 cards operating at 13.56 MHz.

Q: Does it support Wi-Fi?
A: Yes, it supports Wi-Fi and TCP/IP connectivity.

Q: Can it work with PoE?
A: Yes, it supports standard PoE for simplified installation.

Q: Does it support mask recognition?
A: Yes, mask recognition is supported.

Q: How many logs can it store?
A: It can store up to 150,000 transaction logs.

Q: Where can I buy it in Bangladesh?
A: You can purchase it from Expert Technologies BD with installation and support services.
